Medical Tape/Plaster Coating Laminating Machine
Product Overview
JIAYUAN Medical Tape/Plaster Coating Laminating Machine is built for medical consumable manufacturers that require stable adhesive coating, reliable material lamination, and repeatable roll-to-roll production. The machine can work with different medical tape structures and adhesive systems, supporting the production needs of medical dressings, disposable adhesive tapes, surgical bandage tapes, waterproof medical adhesive products, elastic tapes, and breathable medical dressing materials.
The core value of this line is not only coating adhesive onto a substrate. It is designed to coordinate adhesive melting, glue feeding, coating thickness, substrate tension, laminating pressure, correction accuracy, cooling, and rewinding quality, so that the finished material can enter downstream slitting, cutting, packaging, or further converting processes more smoothly.
Product Advantages
Precision Coating
The machine uses a high-precision coating structure to support uniform adhesive application across the working width. For medical tape and plaster production, stable coating quality is important because uneven adhesive distribution may affect tack, peel strength, surface flatness, and downstream converting performance. JIAYUAN focuses on controlled coating output for continuous medical adhesive material production.
Stable Temperature
The medical tape production process requires stable adhesive viscosity during coating. JIAYUAN’s medical tape machine is equipped with intelligent PID temperature control, helping maintain adhesive temperature and reduce the risk of adhesive degradation caused by unstable heating. This supports more consistent bonding performance during long production runs.
Flexible Laminating
The machine supports coating and laminating functions for different medical materials. By adapting the laminating and spraying system, it can be used for PE film and non-woven fabric laminating, special fiber material laminating, and medical material composite processing. A PUR glue tank can also be configured for higher-grade medical material laminating requirements.
Stable Operation
Roller balance, scientific installation, web correction, and synchronized operation all affect the final roll quality. JIAYUAN’s machine is designed to reduce wrinkling during lamination, support low-noise stable operation, and improve the finished product yield. For medical tape manufacturers, this helps reduce material waste and improve downstream processing efficiency.
1
Material Unwinding
The process begins with stable unwinding of the base material. Depending on the target product, the substrate may include medical non-woven material, PE film, woven cloth, cotton fabric, gauze, or other medical tape base materials. Web correction helps keep the material aligned before coating and laminating.
2
Adhesive Coating
The adhesive is heated and delivered to the coating section, where controlled coating is applied to the substrate. Stable glue feeding, coating die accuracy, temperature control, and coating weight adjustment are key factors for producing medical adhesive materials with consistent bonding performance.
3
Laminating Rewinding
After coating, the material can be laminated with another layer, cooled, corrected, and rewound into finished rolls. Good rewinding quality helps reduce roll deformation and prepares the material for slitting, cutting, punching, or packaging according to the final medical tape or plaster specification.
Application

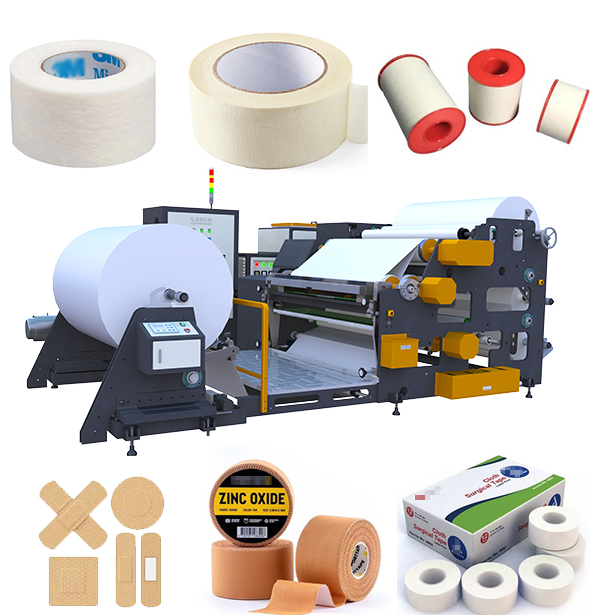

Medical Dressings
JIAYUAN Medical Tape/Plaster Coating Laminating Machine can be used for medical dressing material production where soft substrates, controlled adhesive coating, and stable laminating performance are required. For wound care products, the material surface, adhesive distribution, breathability, and roll quality all affect the final converting process. This machine supports roll-to-roll coating and laminating for manufacturers producing breathable dressing materials, disposable adhesive dressings, and medical consumable base materials.
Surgical Plasters
For surgical plaster and bandage tape production, adhesive consistency and lamination flatness are especially important. JIAYUAN’s coating laminating machine helps apply hot melt adhesive onto medical textile substrates and complete laminating, cooling, and rewinding in one continuous line. It can support the production of surgical tapes, fixation tapes, wound care plaster products, and zinc oxide plaster-related materials, depending on the selected substrate and adhesive system.
Elastic Tapes
Elastic medical tapes require controlled coating and laminating so the finished product can maintain flexibility, adhesion, and smooth roll quality. JIAYUAN Medical Tape/Plaster Coating Laminating Machine can support the production of sports muscle tapes, elastic ripple tapes, breathable medical tapes, and related flexible adhesive products. By matching the coating structure, adhesive system, and substrate tension, manufacturers can build a more stable production process for elastic medical tape materials.
Coating Width
The official medical tape machine page lists an effective coating width range of 400–2000mm. This gives manufacturers flexibility to plan production according to product width, slitting layout, material utilization, and expected output requirements.
Coating Weight
The listed coating weight range is 10–200g/m². In actual medical tape or plaster production, the coating weight should be selected according to adhesive type, substrate structure, required bonding strength, and final product application.
Coating Speed
The listed maximum coating speed is up to 50m/min. Actual production speed should be determined by adhesive viscosity, coating weight, substrate type, laminating structure, cooling effect, and downstream roll quality requirements.
Unwind and Rewind
The official medical tape product information lists an unwind diameter of 1000mm and a rewind diameter of 700mm. These parameters help manufacturers evaluate roll handling, continuous production duration, and workshop layout before machine selection.
Custom Configuration
JIAYUAN supports customized machine configuration. For medical tape and plaster projects, buyers should confirm product type, substrate material, adhesive system, coating width, coating weight, laminating structure, speed expectation, and downstream converting process before finalizing the line.
