JYT-GB
JIAYUAN
JYT-GB

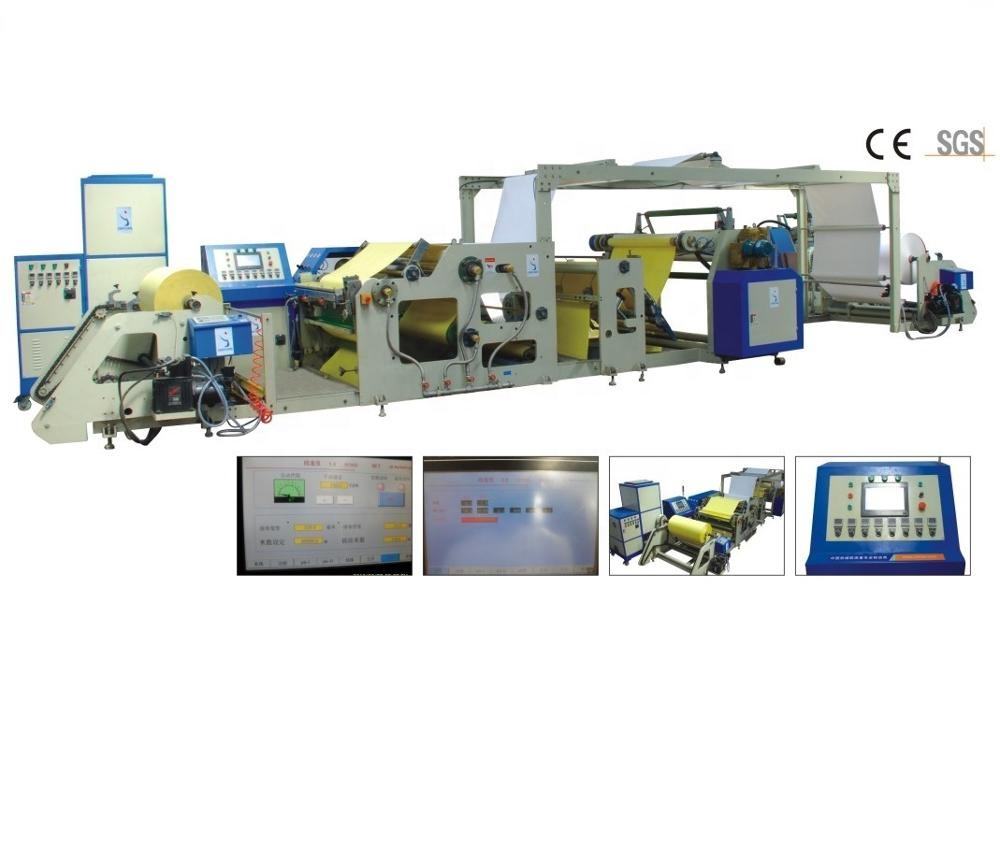

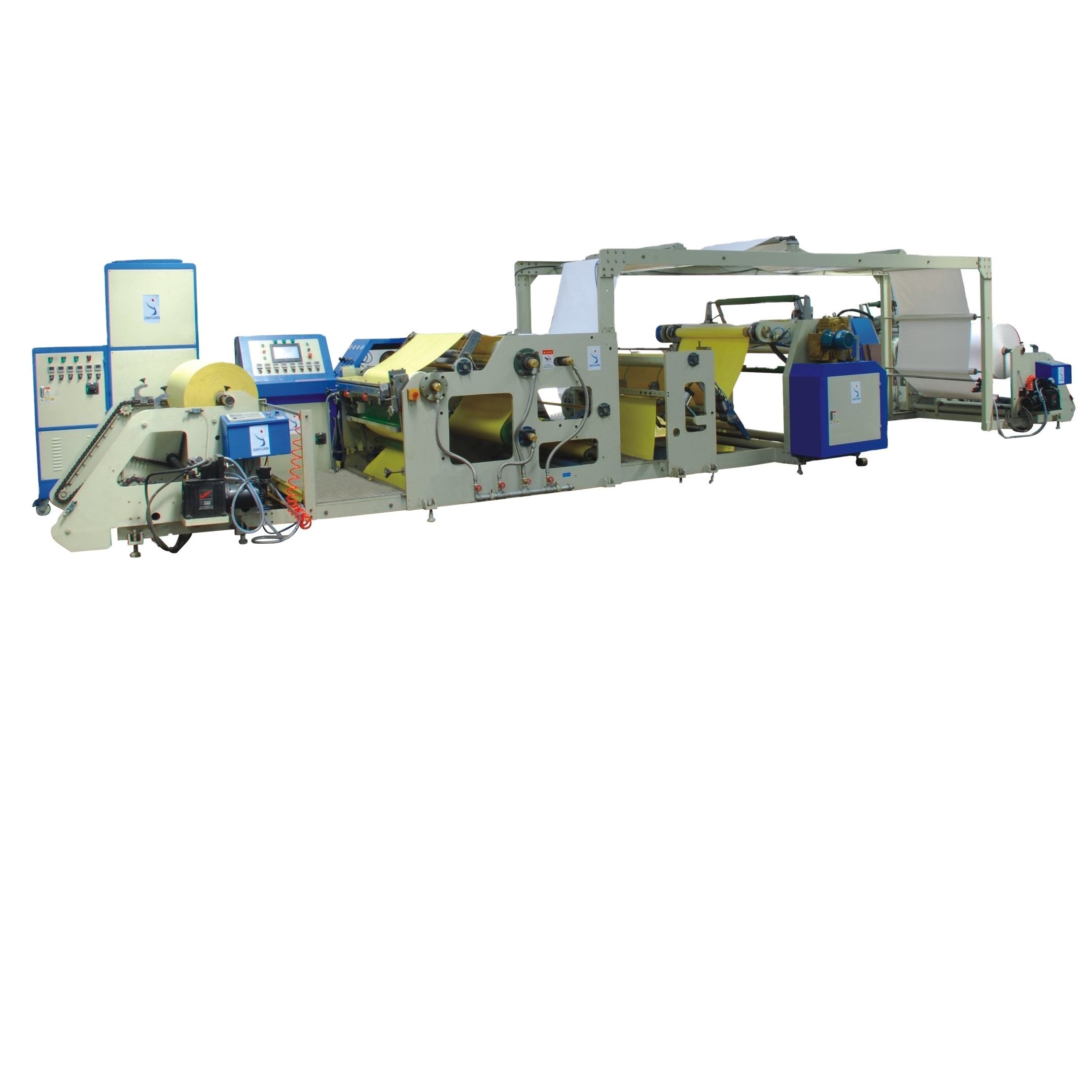

The JYT-GB Full Automatic High Speed Kraft Paper PE Film Lamination Machine Production Line is an industrial system designed for continuous lamination of kraft paper with PE film. The production line integrates automatic unwinding, precision coating or adhesive application, heating, cooling, and rewinding into a single continuous process, producing laminated kraft paper with moisture resistance and surface uniformity. It is built for packaging material manufacturers, food wrapping producers, building material suppliers, and industrial protective paper converters that require high-volume output with consistent bonding strength.
The line operates with a PLC touch screen for centralized automated control, supporting a coating width range of 400 to 2000 millimeters and a coating weight range of 10 to 200 grams per square meter. With a production speed range of 50 to 350 meters per minute and unwind and rewind diameters up to 1000 millimeters, the line is configured for large-roll, continuous production runs.
The line is equipped with a PLC touch screen for fully automated centralized control. A pneumatic feeding device facilitates smooth material feeding and maintains web flatness, supporting continuous operation without interruptions.
A fully automatic constant tension control system regulates web tension throughout the line. The system employs center and surface winding for neat and flat material collection, helping to ensure consistent lamination quality across the full roll width.
The line features a multi-layer filtration system that removes impurities from the adhesive or coating material, contributing to a clean coating appearance. The high-precision, wear-resistant alloy steel coating die delivers consistent coating effects across the speed range of 50 to 350 meters per minute.

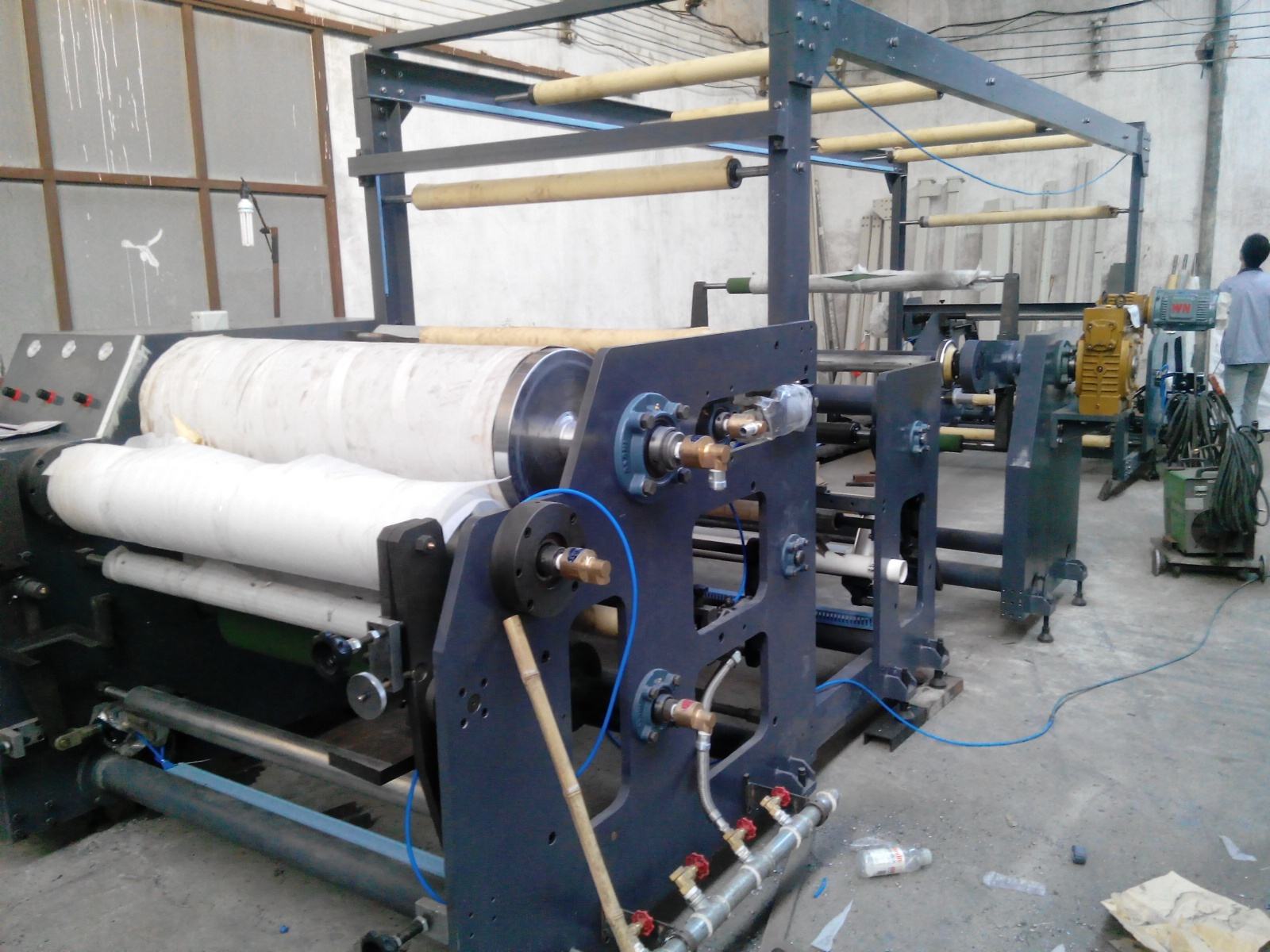

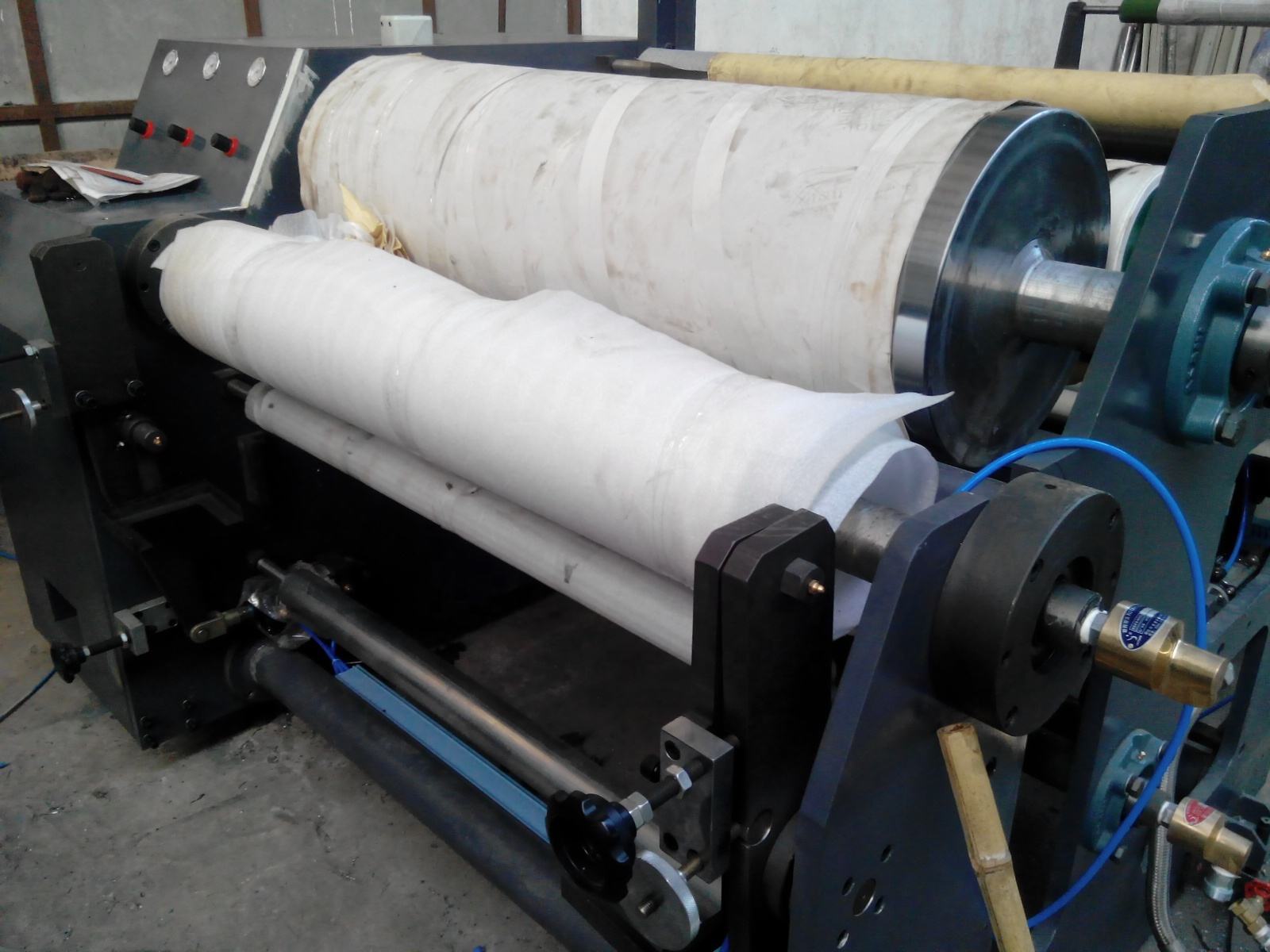

A precise temperature control system maintains the optimal temperature for hot melt adhesive or PE coating during lamination. Precision coating rollers and scrapers enable uniform coating with adjustable thickness, accommodating different paper weights and PE film thicknesses.
Parameter | Value |
|---|---|
Product Type | Kraft Paper PE Film Lamination Machine |
Model | JYT-GB |
Customization | Supported |
Coating Width | 400-2000mm |
Coating Weight | 10-200g/m2 |
Coating Speed | 50-350m/min |
Unwinding Diameter | 1000mm |
Rewinding Diameter | 1000mm |
Packaging Material | Wood |
Packaging Type | Box |
Core Components Warranty | 1 Year |
Origin | Zhejiang, China |
Mechanical Test Report | Provided |
Customization | Parameters can be adjusted based on specific customer requirements |
The JYT-GB production line is used for laminating kraft paper with PE film to produce moisture-resistant packaging materials. Common applications include food wrapping paper, building material protective paper, industrial packaging liners, and waterproof kraft paper products. The line can be configured to accommodate different paper weights, PE film thicknesses, lamination methods, and production speeds, meeting the requirements of packaging material converters and industrial paper product manufacturers. For business buyers producing food-grade packaging or industrial protective materials, the line offers adjustable coating weight, constant tension control, and automated operation to support consistent output quality across large production volumes.
The JYT-GB operates at a coating speed range of 50 to 350 meters per minute, adjustable based on material specifications and production requirements.
The coating width ranges from 400 to 2000 millimeters, and the coating weight ranges from 10 to 200 grams per square meter.
Yes. The line can be customized to accommodate different paper weights, PE film thicknesses, and lamination methods. Parameters can be adjusted based on specific customer requirements.
Core components are covered by a 1-year warranty. Mechanical test reports are provided with the equipment.
The equipment is packaged in wooden boxes for safe transport. The line is manufactured in Zhejiang, China, and customization options are available. Contact the manufacturer for a detailed quotation and delivery schedule.
