JYT-B
JIAYUAN
JYT-B-2

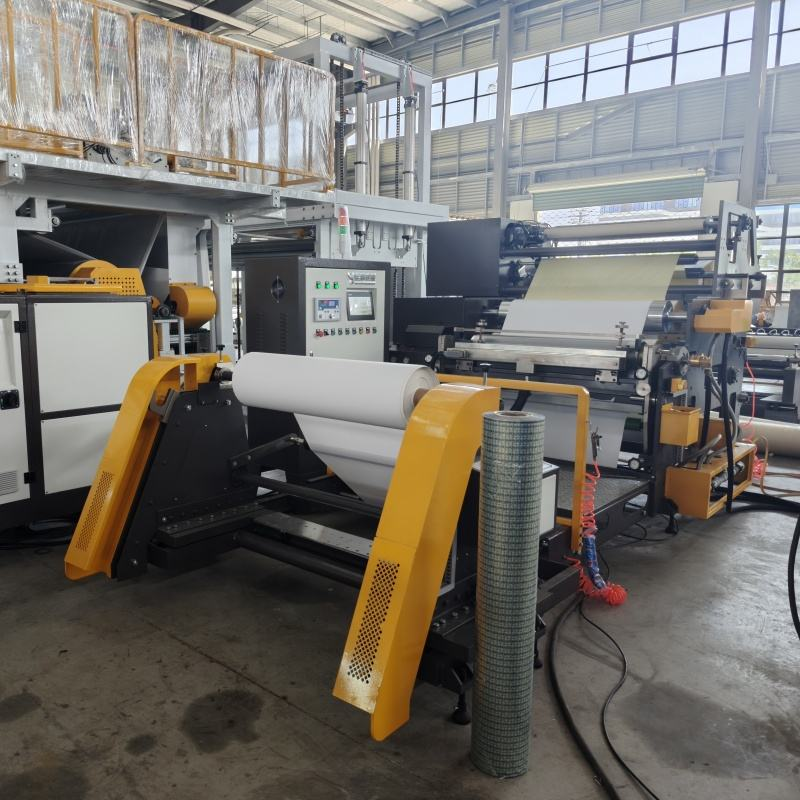

The Hot Melt Coating Machine for Self Adhesive Labels (Brand: JIAYUAN, Model: JYT-B) is a pressure-sensitive adhesive (PSA) coating and laminating system manufactured by Ruian City Jiayuan Machinery Co., Ltd. This machine applies hot melt adhesives onto release liners and face stocks for the production of self-adhesive label materials used in food and beverage, logistics, pharmaceutical, cosmetic, and industrial identification labeling.
The system applies hot melt adhesives onto substrates including glassine paper, release paper, PET film, PP film, BOPP film, and PE film. It supports multiple coating methods — including slot die coating, comma coating, and roller coating — allowing manufacturers to select the appropriate coating method based on adhesive viscosity and label specification requirements.
The machine operates within a coating width range of 400–2000mm and supports a coating weight range of 10–200g/m². This range covers standard self-adhesive label constructions from thin film labels to thick paper-based industrial labels.
The system operates at coating speeds of 50–100m/min, supporting continuous production for label converters with medium to high output requirements. The automated tension control maintains consistent web handling at these speeds to reduce coating variation.
The JYT-B model features independent first and second unwind stands, each with a diameter capacity of 1000mm. Two sets of automatic correction systems maintain substrate alignment throughout the coating and laminating process, reducing edge trim waste and improving material utilization.
The machine supports slot die coating, comma coating, and roller coating methods. This flexibility allows manufacturers to process hot melt adhesives of varying viscosities and to produce different label surface finishes — including smooth coating surfaces and controlled texture patterns — on one system.
The intelligent PLC control system manages temperature regulation, line speed, tension, and coating parameters. Operators can store production recipes for different label specifications, reducing setup and changeover time between product runs.
Parameter | Value |
|---|---|
Product Type | Hot Melt Coating Machine |
Model | JYT-B |
Coating Width | 400-2000mm |
Coating Weight | 10-200g/m² |
Coating Speed | 50-100m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 1000mm |
Correction System | 2 sets |
Length | 8500mm |
Height | 2400mm |
Power | 38-60kW |
Power Supply | 380V±15% 50Hz |
Origin | China |
Shipping Methods | Air, Sea, Land |
Customization | Parameters can be adjusted based on specific customer requirements |
This coating machine produces self-adhesive label materials for food and beverage product labeling, logistics and shipping labels, pharmaceutical packaging labels, cosmetic product labels, and industrial identification labels. Enterprise customers in label converting and packaging manufacturing use this system to produce PSA label stock with consistent adhesive coating weight and peel performance.
The JYT-B model supports slot die coating, comma coating, and roller coating. The appropriate method is selected based on the hot melt adhesive viscosity, target coating weight, and desired surface finish of the label product.
Yes. The system processes glassine paper, release paper, PET film, PP film, BOPP film, and PE film substrates. Substrate compatibility for materials outside this list should be confirmed with the manufacturer prior to ordering.
Yes. Parameters including coating width, unwind/rewind diameter, machine length, and power configuration can be adjusted based on specific customer production requirements. Customers should provide their production specifications and factory layout constraints for a customized configuration proposal.
