JYT-B
JIAYUAN
JYT-B-DOUBLE SIPE TAPE

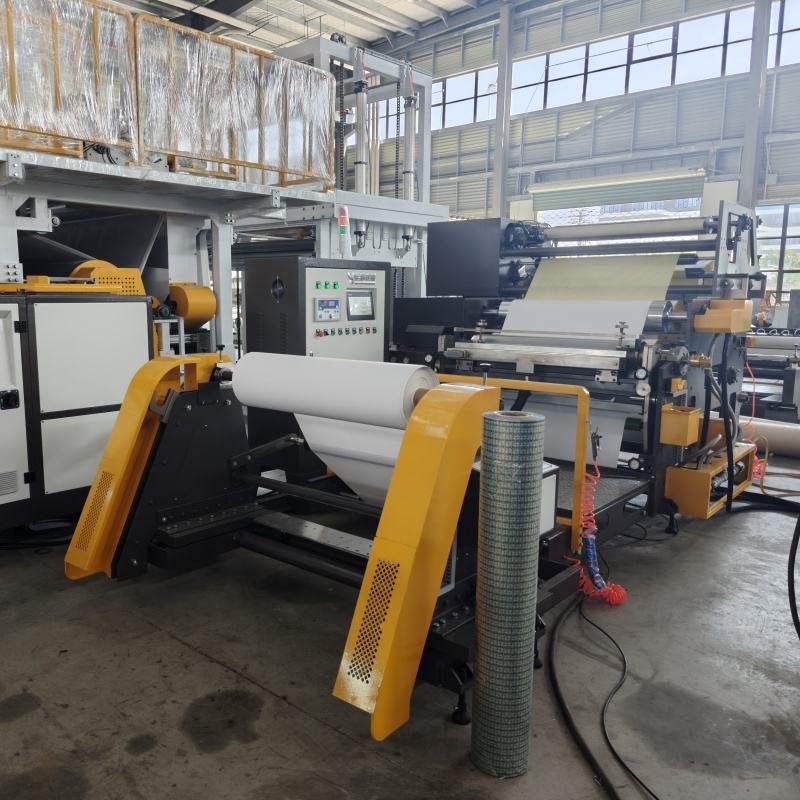

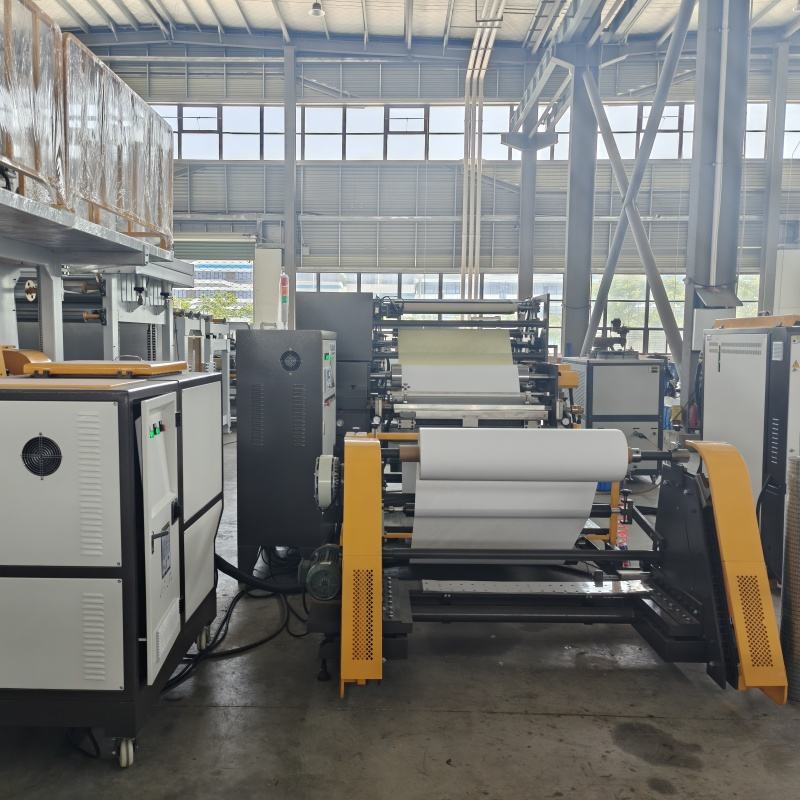

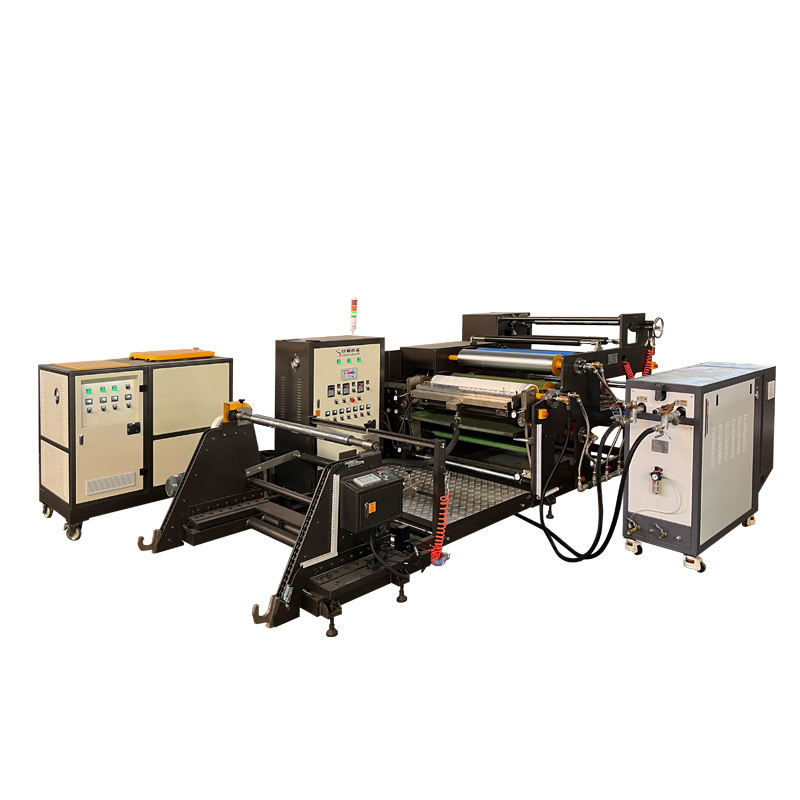

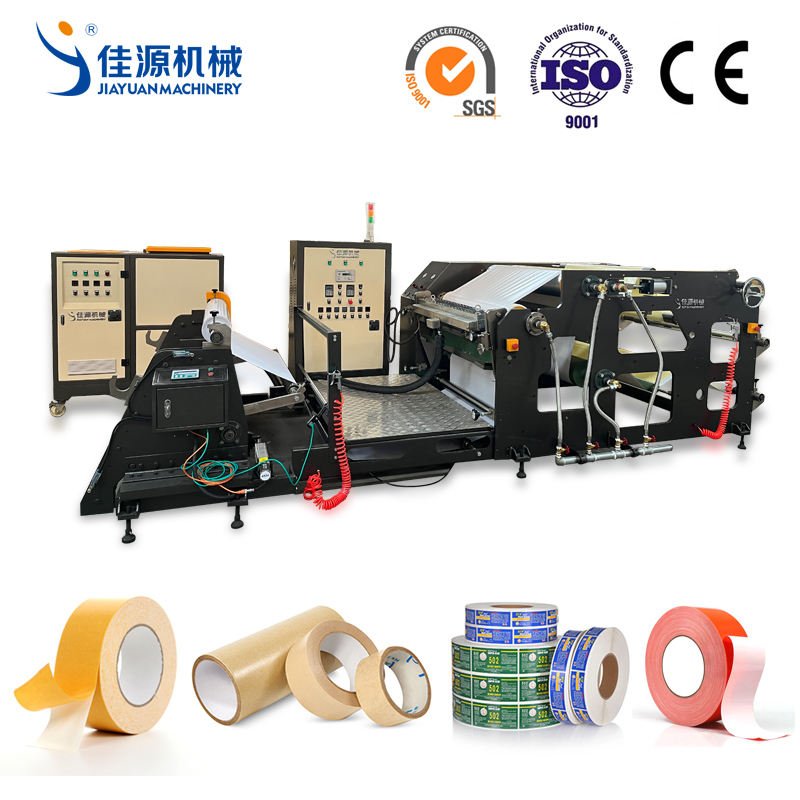

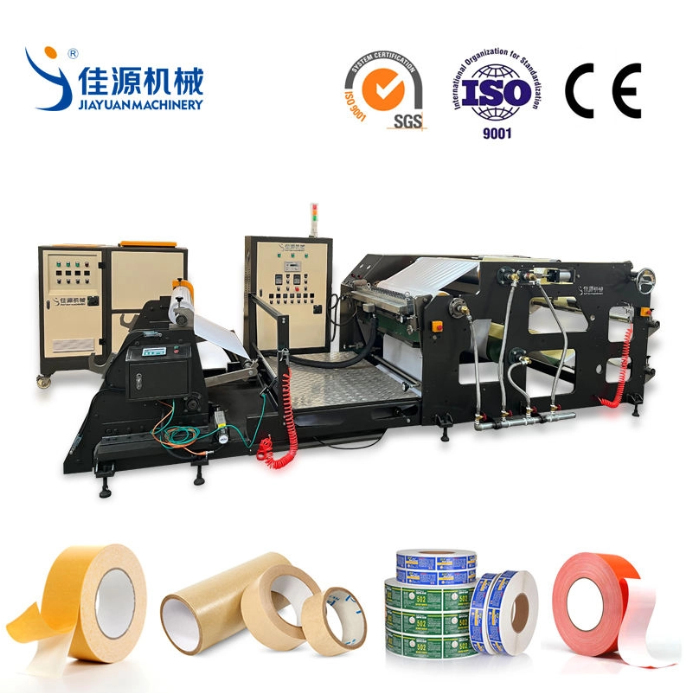

The JYT-B Hot Melt Coating Laminating Machine is an industrial system designed for applying hot melt adhesive onto both sides of a substrate to produce double-sided adhesive tapes. The machine integrates coating and laminating into a single continuous process, using hot melt coating technology to deposit a controlled adhesive layer onto films, nonwoven fabrics, foam, paper, and textiles. It is built for manufacturers in electronics, packaging, construction, automotive, and medical sectors that require consistent adhesive weight and stable lamination quality across production runs.
The system operates with manual speed control for both machine drive and glue feeding, with automatic synchronous tracking to maintain alignment between line speed and adhesive output. An intelligent PID temperature controller regulates melt temperature within a tolerance of 1 degree Celsius, helping to keep adhesive viscosity stable during production.
The machine is equipped with a high-precision alloy steel coating die and a high-precision gear pump. Together these components regulate adhesive flow rate and coating weight across the full web width, supporting a coating weight range of 10 to 200 grams per square meter.
Machine speed and glue feeding speed are controlled manually and tracked automatically in synchronization. All active and passive rollers are adjusted with a high-precision balancing device, and the logical installation layout supports stable running, low noise, and wrinkle-free laminated materials.
By changing the fiber spraying system, the machine can handle PE film lamination with nonwoven fabrics, special fiber materials, shoe and garment materials, and medical materials. The fiber spraying system enables low-weight glue application with uniform and fine distribution and breathability. Equipped with a PUR glue tank, the machine can also be used for high-grade material lamination.
The intelligent PID temperature control system maintains melt temperature within plus or minus 1 degree Celsius. The design includes automatic shutoff and temperature monitoring to prevent overheating, and a closed-loop adhesive system helps reduce material waste.
Parameter | Value |
|---|---|
Model | JYT-B |
Coating Width | 400-2000mm |
Coating Weight | 10-200g/m2 |
Coating Speed | 50m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 700mm |
Correction Device | 1 set |
Length | 5000mm |
Height | 1400mm |
The JYT-B is primarily used for producing double-sided adhesive tapes, shoe materials, medical dressing tapes, and low-temperature hot melt adhesive films. It also supports lamination of different materials including nonwoven fabrics, filter materials, and medical materials. With the optional fiber spraying system, the machine extends to PE film lamination with nonwoven and special fiber substrates, serving shoe material, garment material, and medical material manufacturers. For industrial clients producing general-purpose double-sided tapes, foam tapes, or medical dressing tapes, the JYT-B provides a configurable coating and laminating platform with adjustable adhesive weight and substrate compatibility.
The JYT-B is compatible with films, nonwoven fabrics, foam, paper, and textiles. With the optional fiber spraying system, it can also laminate PE film with nonwoven and special fiber materials.
The coating weight ranges from 10 to 200 grams per square meter, adjustable through the gear pump and coating die settings.
Yes. When equipped with the optional PUR glue tank, the JYT-B can be used for high-grade material lamination with PUR adhesives.
The intelligent PID temperature control system maintains a tolerance within 1 degree Celsius.
Yes. Coating width, adhesive weight range, and optional systems such as the fiber spraying unit or PUR glue tank can be configured based on specific production requirements. Contact the manufacturer for a customized quotation.
