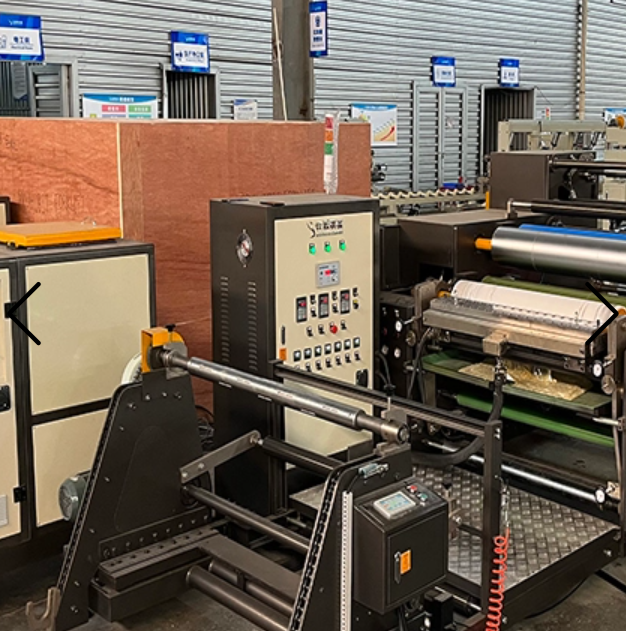

As a core medical adhesive tape coating equipment, it integrates high-precision coating, laminating, unwinding, rewinding, and correction functions, with synchronous speed control and intelligent temperature regulation, to meet the high-standard production requirements of medical consumables. It can adapt to a variety of substrates and adhesive systems, and is the ideal production solution for enterprises specializing in medical consumables manufacturing.
The machine speed and glue feeding speed of this surgical tape manufacturing machine are manually adjustable, with automatic synchronous tracking, matched with high-precision alloy steel coating die and gear pump, to ensure uniform and high-precision coating effect.
Equipped with an intelligent PID temperature control system, the temperature control tolerance is within ±1°C, which accurately controls the adhesive temperature, avoids adhesive degradation, and ensures the stability of the bonding performance of medical products.
By replacing the fiber spraying system, it can realize PE film and non-woven fabric laminating, special fiber material laminating, and medical material composite processing. Equipped with a PUR glue tank, it can adapt to high-grade medical material laminating production.
All active and passive rollers are adjusted by a high-precision balancing device, with scientific installation technology, to ensure low-noise stable operation of the machine, no wrinkling of laminated materials, and a high finished product yield.
Parameter | Specification |
Model | JYT-B |
Brand | JIAYUAN |
Effective Coating Width | 400-2000mm |
Coating Weight | 10-200g/m² |
Maximum Coating Speed | 50m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 700mm |
Correction Device | 2 sets |
Equipment Length | 5000mm |
Equipment Height | 1400mm |
This bandage tape production equipment is specially designed for manufacturing enterprises producing medical consumables, suitable for the production of:
Medical dressings and disposable medical adhesive tapes
Surgical bandage tapes and wound care plaster products
PE medical tapes and waterproof medical adhesive products
Sports muscle tapes and elastic ripple tapes
Silk medical tapes and breathable medical dressing products
Can this coating machine produce different types of medical adhesive tapes?
Yes, the machine has strong multi-functionality, by adjusting the coating parameters, replacing the laminating system, and adapting different adhesive systems, it can produce various types of medical tapes and dressing products to meet diverse production needs.
What is the temperature control accuracy of the system?
The intelligent PID temperature control system achieves a temperature control tolerance within ±1°C, which meets the strict temperature control requirements of medical adhesive production, ensuring stable product performance.
Is the equipment compatible with PUR glue systems?
Yes, the machine can be equipped with a PUR glue tank, which can be used for high-grade medical material laminating production, expanding the application range of the equipment.
What is the maximum coating width supported by the equipment?
The equipment supports an effective coating width ranging from 400mm to 2000mm, which can be customized according to the actual production needs of clients.
JIAYUAN is a professional manufacturer of industrial coating equipment with rich R&D and production experience, focusing on providing high-precision production equipment for medical consumables manufacturing enterprises. We provide comprehensive one-stop services, including pre-sales process planning, customized equipment configuration, on-site installation and operator training, long-term after-sales technical support, and a complete warranty system. All equipment is manufactured in strict accordance with international quality standards, meeting the high-standard production requirements of the medical consumables industry.
