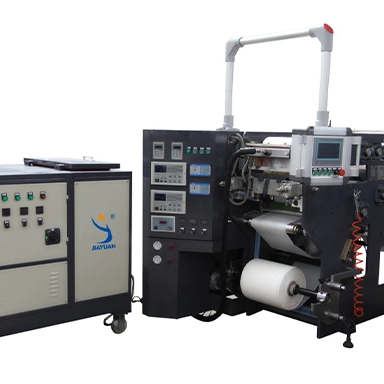

The JYT320-200 Hot Melt Coating Machine is a high-performance, compact coating system engineered and manufactured by Jiayuan, a trusted professional supplier of adhesive coating equipment with years of industry expertise. This hot melt coater is purpose-built for core applications including label production, adhesive tape manufacturing, and slide fastener adhering, making it the optimal choice for factories, R&D labs, and contract manufacturers focused on new product development and low-volume, flexible production.
Available in two customizable configurations, the JYT320 series delivers a maximum coating width of 200mm (JYT320-200) and 320mm (JYT320-320), with an ultra-flexible coating weight range of 7g/m² to 120g/m² and an adjustable operating speed of 50-150m/min. Unlike large-scale industrial coating lines, this machine features a space-saving footprint, low energy consumption, and tool-free quick changeover, helping manufacturers drastically reduce R&D costs, shorten product launch cycles, and improve profitability for small-batch custom orders.
Designed specifically to solve the core pain points of new product testing and low-volume manufacturing, the JYT320-200 eliminates the need to tie up high-capacity production lines for sampling and small runs. This drastically cuts down material waste, machine downtime, and labor costs associated with prototype development, allowing your team to iterate product designs faster and respond to market demands with unmatched agility.
With a precision-engineered coating roller system, the machine supports a broad 7g/m² to 120g/m² coating weight range, with uniform glue application and consistent thickness control across the entire web width. The 50-150m/min stepless speed adjustment adapts to different base materials, adhesive formulations, and process requirements, enabling one machine to handle multiple product lines and reduce redundant equipment investment.
The JYT320 series comes standard with 2 independent unwind units and 1 automatic rewind unit, compatible with a maximum base material diameter of 400mm and industry-standard 76mm paper cores. This fully integrated design completes the entire unwinding-coating-rewinding workflow in a single pass, eliminating the need for auxiliary equipment, reducing manual handling, and boosting overall production efficiency.
With a compact overall dimension of 2200mm (L) × 980mm (W) × 1300mm (H), the machine has a minimal footprint that fits perfectly in small production workshops, R&D laboratories, and pilot production facilities. The maximum power consumption is only 8kw for the JYT320-200 and 9.5kw for the JYT320-320, delivering significant energy savings compared to large coating lines and reducing long-term operational costs for your business.
The high-precision roller design ensures stable, bubble-free, and uniform coating across the entire production run, drastically reducing defect rates and material scrap. This precision control not only improves the consistency and quality of your finished products, but also cuts down on raw material waste, directly lowering your production costs and improving profit margins.
Structured data optimized for Google rich snippets and buyer technical evaluation
Core Parameter | JYT320-200 | JYT320-320 |
Roller Width | 240mm | 370mm |
Maximum Coating Width | 200mm | 320mm |
Maximum Base Material Diameter | 400mm | 400mm |
Standard Paper Core Diameter | 76mm | 76mm |
Unwind Unit Configuration | 2 sets | 2 sets |
Rewind Unit Configuration | 1 set | 1 set |
Coating Weight Range | 7g/m² - 120g/m² | 7g/m² - 120g/m² |
Adjustable Operating Speed | 50 - 150m/min | 50 - 150m/min |
Maximum Power Consumption | 8kw | 9.5kw |
Overall Dimensions (L×W×H) | 2200×980×1300mm | 2200×980×1300mm |
Ideal for manufacturing and sampling all types of labels, including self-adhesive labels, thermal labels, anti-counterfeit labels, and logistics shipping labels. The machine’s flexible configuration supports small-batch custom label orders and new label material R&D, solving the pain point of high changeover costs on large production lines.
Perfect for the production and prototype development of hot melt adhesive tapes, double-sided tapes, foam tapes, masking tapes, and specialty adhesive tapes. The wide coating weight and speed adjustment range adapts to various tape substrates and adhesive formulations, making it a versatile solution for tape manufacturers’ R&D and small-volume production needs.
Engineered for hot melt adhesive application in zipper, hook and loop fastener, and webbing production. The precision coating system ensures consistent adhesive application and strong bonding performance, meeting the strict quality requirements of the garment and textile accessories industry for both mass sampling and small-batch production.
The JYT320 series is also widely used in non-woven fabric coating, medical dressing production, automotive interior adhesive application, packaging material coating, and other industrial sectors requiring reliable, flexible hot melt coating solutions.
Jiayuan has focused on the R&D, manufacturing, and global distribution of hot melt coating equipment for years, serving thousands of customers across the label, adhesive tape, packaging, and textile industries worldwide. Our deep industry experience and technical accumulation ensure every machine delivers reliable, long-term performance in real-world production environments.
We offer full customization of the JYT320 series coating machine, including roller configuration, speed control systems, unwind/rewind upgrades, and auxiliary function additions, to perfectly match your specific base material, coating process, and production requirements.
We provide end-to-end support for our global customers, including remote installation guidance, operator training, 24/7 online technical support, and long-term genuine spare parts supply. Our dedicated service team ensures minimal downtime and maximum operational efficiency for your equipment throughout its service life.
Every JYT320-200 hot melt coating machine undergoes rigorous multi-stage quality inspection and full-load performance testing before delivery, compliant with international manufacturing standards. We offer a comprehensive warranty policy and ongoing maintenance support, giving you complete peace of mind with your investment.
The JYT320-200 model delivers a maximum coating width of 200mm, while the JYT320-320 variant supports a maximum coating width of 320mm. Both models offer a flexible coating weight range of 7g/m² to 120g/m² to suit diverse application needs.
Yes, this machine is specifically designed and optimized for new product development and small batch production. It eliminates the need to use large-scale production lines for sampling and small runs, drastically reducing R&D costs and shortening product testing cycles.
The JYT320-200 hot melt coating machine features a stepless adjustable operating speed range of 50-150m/min, which can be fine-tuned based on your specific coating process, base material, and finished product quality requirements.
Yes, the JYT320 series is equipped with 2 independent unwind units and 1 automatic rewind unit as standard. It supports a maximum base material diameter of 400mm and industry-standard 76mm paper cores, enabling a fully integrated one-pass production workflow.
Yes, we provide full customization services for the JYT320 series hot melt coating machine. Our engineering team will work with you to tailor the machine configuration to your specific substrate, adhesive formulation, and production process needs.
