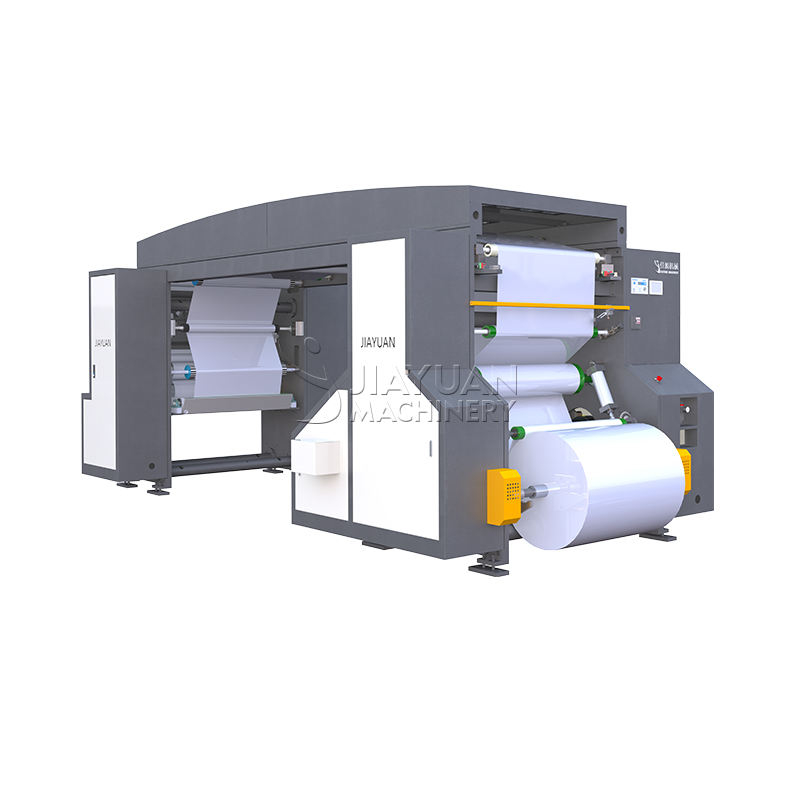

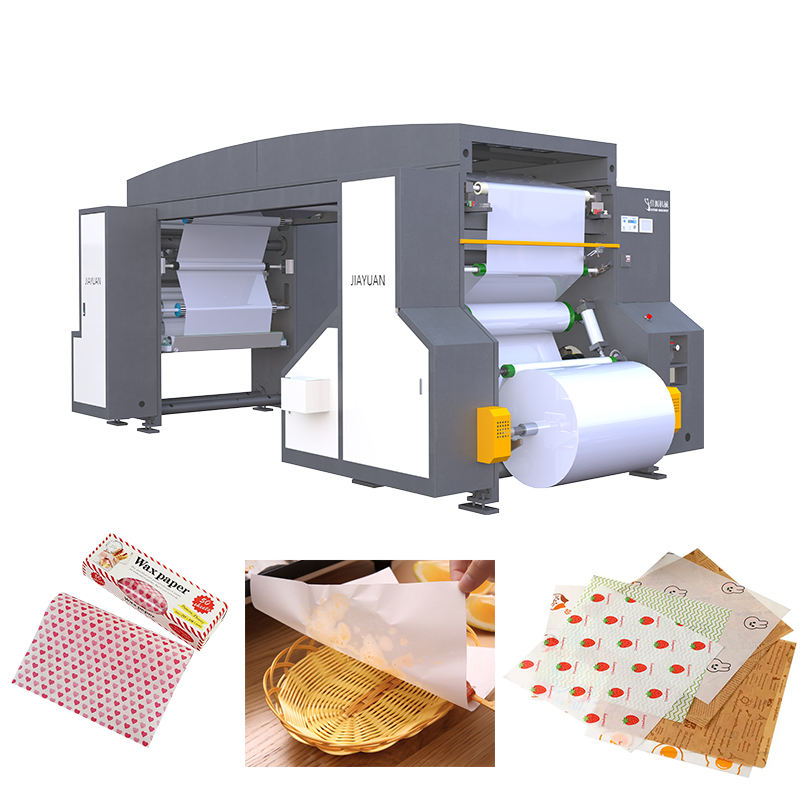

The JYT-L Wax Coating Machine from Ruian City Jiayuan Machinery Co., Ltd. is designed for precision wax application on paper and flexible substrates. With a focus on thin, uniform coating layers, this equipment ensures consistent product quality while maintaining high-speed throughput and minimal material waste. Its user-friendly operation and durable structure make it a reliable solution for food-grade packaging manufacturers and industrial paper treatment lines.
Whether you're working with packaging laminates or barrier-enhanced papers, the JYT-L wax coating equipment offers stability, control, and customization for various production needs.
| Parameter | Specification |
|---|---|
| Model | JYT-L |
| Coating Width | 500–1500 mm |
| Coating Weight | 3–50 g/m² |
| Coating Speed | 10–100 m/min |
| Unwinding Diameter | 1000 mm |
| Rewinding Diameter | 700 mm |
| Correction Device | 1 set |
| Machine Length | 6000 mm |
| Machine Height | 1500 mm |
| Application Type | Food packaging, paper lamination |
| Customization | Available |
| Condition | Brand new |
| Origin | Zhejiang, China |
The machine applies a smooth and even hot melt wax coating on various substrates, enhancing the visual appeal and functionality of the packaging.
Provides water resistance, moisture protection, and improved surface finish, making it perfect for food and beverage packaging.
The machine operates at high speeds, allowing for continuous high-volume production of wax-coated packaging materials.
Quick processing time helps increase productivity and reduce manufacturing delays, making it ideal for large-scale production.
Suitable for a wide range of packaging materials, including cardboard, films, paper, plastics, and textiles.
The versatility of the machine makes it ideal for producing a wide variety of packaging products such as boxes, bags, wrappers, and labels.
Wax coating improves the strength and durability of packaging materials, enhancing their ability to withstand wear, tear, and environmental factors.
It provides moisture resistance and barrier properties, ensuring that the packaged products remain intact during transportation and storage.
The system allows for precise control over the wax coating thickness, ensuring that the desired level of protection is applied based on the type of packaging.
Adjustable parameters allow manufacturers to produce packaging with different finishes, from a light gloss to a high gloss finish.
The machine combines both coating and laminating functions in a single system, streamlining the production process and reducing material handling time.
Ensures uniform adhesion between the wax layer and the substrate, creating stronger bonds that enhance the packaging’s integrity.
The machine incorporates an energy-efficient heating system, ensuring that wax melting is quick and efficient without wasting energy.
The low power consumption results in cost savings for manufacturers over time.

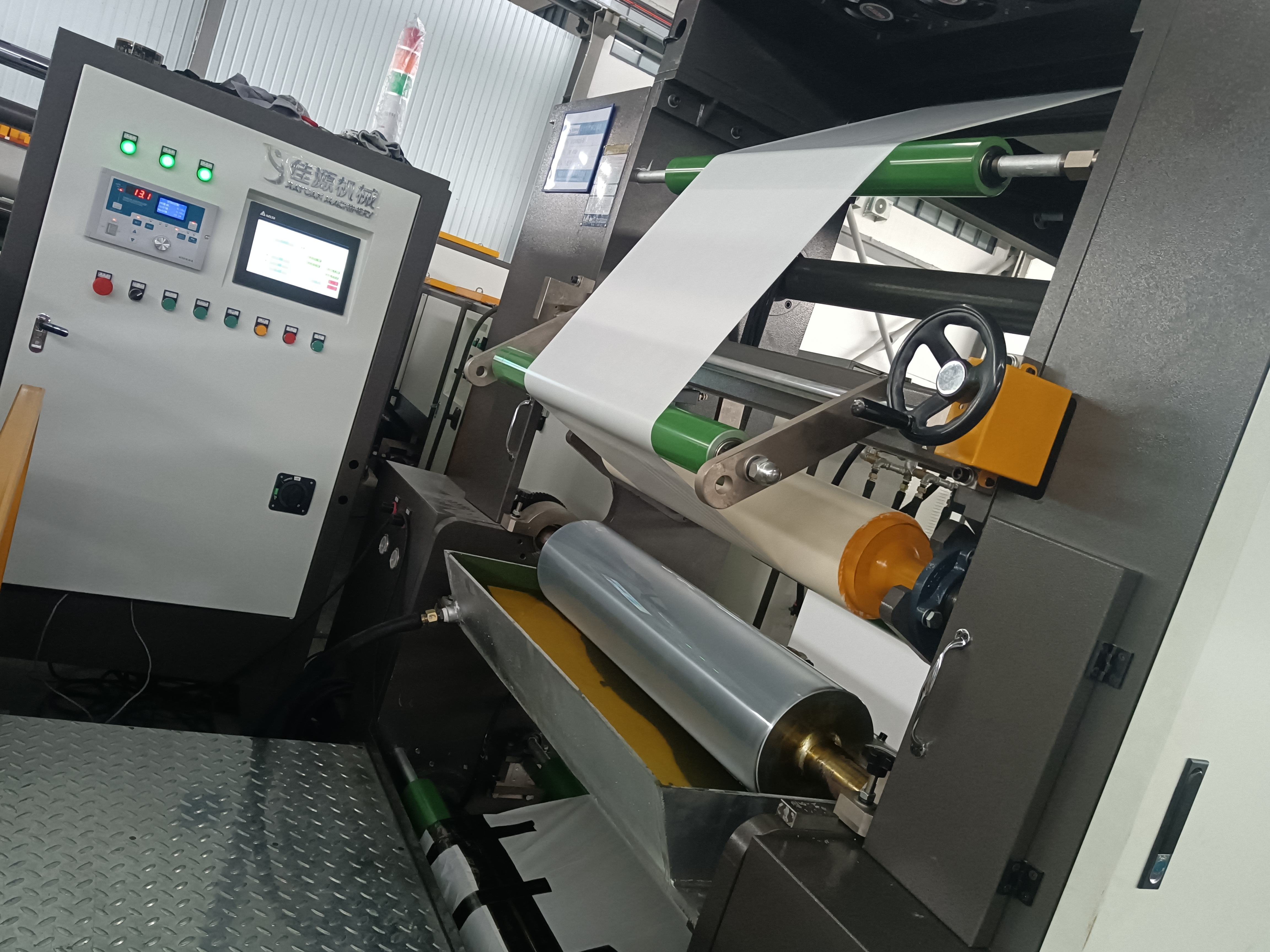

User-friendly interface with a digital control panel allows operators to easily monitor and adjust key parameters such as wax temperature, coating speed, and laminating pressure.
Real-time monitoring ensures that any variations in the coating process are quickly addressed, maintaining consistent quality.
The machine is built with durable, industrial-grade components designed for minimal maintenance.
Automated wax application and cleaning systems reduce the need for frequent manual intervention, increasing uptime and reducing labor costs.
By combining the coating and laminating processes, the machine reduces the need for multiple machines, saving on initial investment and operational costs.
The system is optimized for high-volume production, ensuring that manufacturers can meet market demand while keeping costs low.
The JYT-L wax coating machine is commonly used in:
Food packaging: coated wrappers, bakery liners, chocolate wrapping
Paper treatment: barrier layers for moisture resistance, oil-proof packaging
Industrial labeling: base coat for heat-sealable or thermal-sensitive products
This solution is well-suited for packaging converters, commercial printers, and paper processing enterprises seeking clean, efficient wax application at industrial scale.
A1: The JYT-L supports paraffin, microcrystalline, and blended food-grade waxes. Custom tank options are also available.
A2: Yes, the machine is optimized for thin layers as low as 3g/m², ideal for high-speed, cost-sensitive packaging production.
A3: Absolutely. We offer custom configurations for speed, width, and substrate handling based on your specific needs
