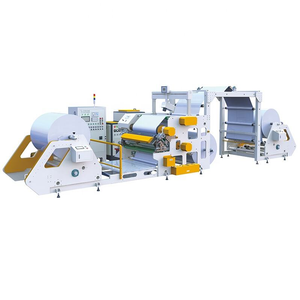

The JYT-B Hot Melt Coating Machine is a precision-engineered unit tailored for manufacturers seeking controlled adhesive application on soft and technical substrates. Developed by Ruian City Jiayuan Machinery Co., Ltd., this system is optimized for multi-layer lamination and fine adhesive distribution, making it ideal for medical tapes, filter fabrics, and industrial liners.
Compact in size but powerful in function, the JYT-B model delivers stable performance at variable speeds and supports diverse coating needs ranging from light film overlays to complex multi-material bonding.
| Specification Item | Value |
|---|---|
| Model | JYT-B |
| Effective Coating Width | 400–2000 mm |
| Weight Application Range | 10–200 g/m² |
| Speed Capability | Up to 50 meters/minute |
| Unwind Diameter | 1000 mm |
| Rewind Diameter | 700 mm |
| Coating Options | Slot Die or Fiber Spray |
| Target Materials | Non-woven, medical film, filter cloth |
| Country of Origin | Zhejiang, China |
Unlike standard systems, the JYT-B supports both slot die and fiber-spray coating technologies. This allows it to switch seamlessly between dense adhesive layering and mist-like low-mass coatings, providing a broad range of adhesive profiles for various products.
Equipped with precision-balanced rollers and noise-reducing structure, the JYT-B ensures smooth web handling even at continuous speeds. This is especially crucial for thin films and breathable layers that require tension-sensitive processing.
Designed to integrate into upstream and downstream systems, the machine can be paired with laminating units, preheating tunnels, or cutting modules. It’s fully customizable based on your existing factory line layout.
The JYT-B is particularly effective in scenarios where precision and repeatability are vital. Common applications include:
Medical tapes: where even adhesive layering impacts skin compatibility and functionality
Filter membrane substrates: which demand breathable, uniform coatings without clogging
Footwear lining and insole bonding: requiring flexible glue application with consistent elasticity
Low-temperature adhesive overlays for sensitive or melt-prone materials
Its ability to manage thin layers with clean cutoffs and minimal waste makes it highly suitable for batch or continuous production in regulated environments.
A1: Slot die offers a uniform, film-like layer, ideal for heavy-duty or solid adhesives. Fiber spray delivers a lighter, more breathable coating—perfect for non-woven or skin-contact products.
A2: Yes. The JYT-B is compatible with PUR, EVA, and other common hot melt adhesives, with optional glue tank integration.
A3: Definitely. Its modular design allows easy integration with existing systems for coating, drying, or rewinding.
