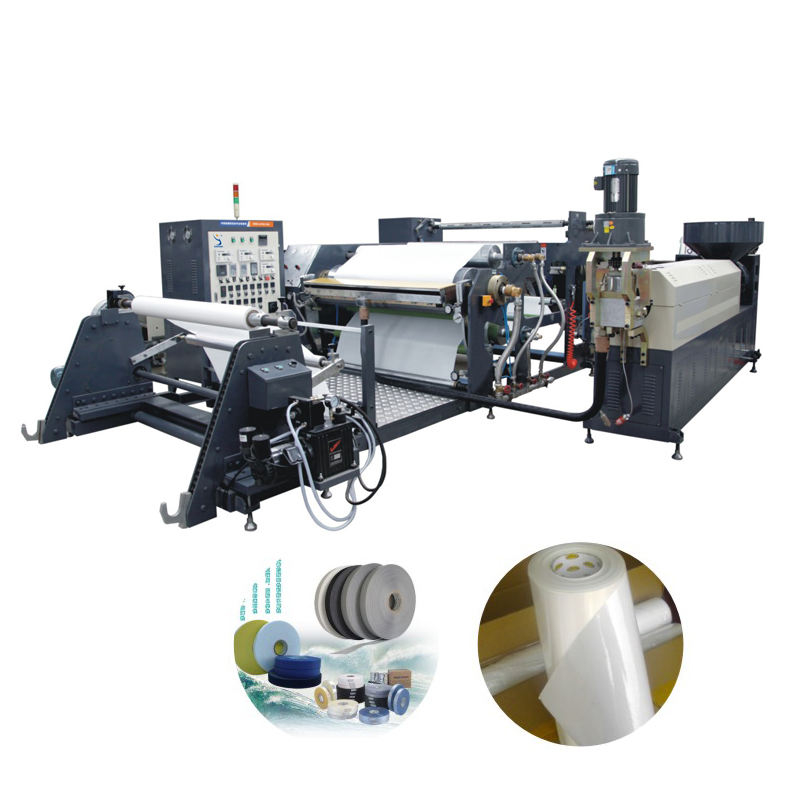

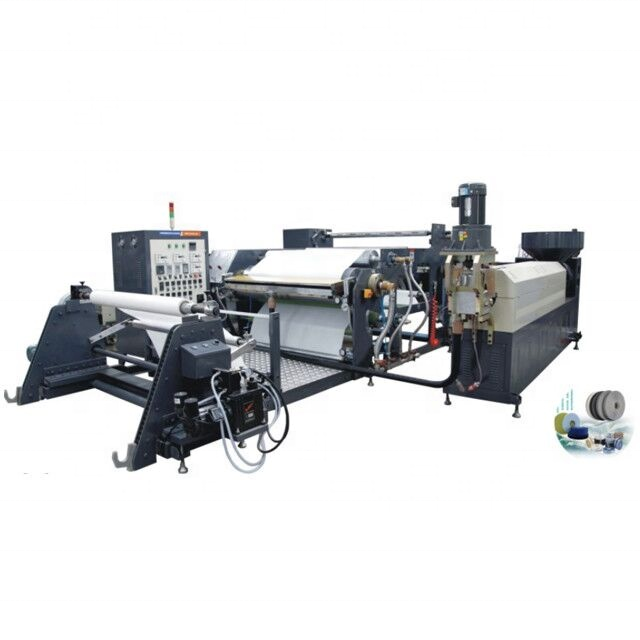

Full-automatic TPU Film Hot Melt Adhesive Film Extruding Production Line

Main characteristics:

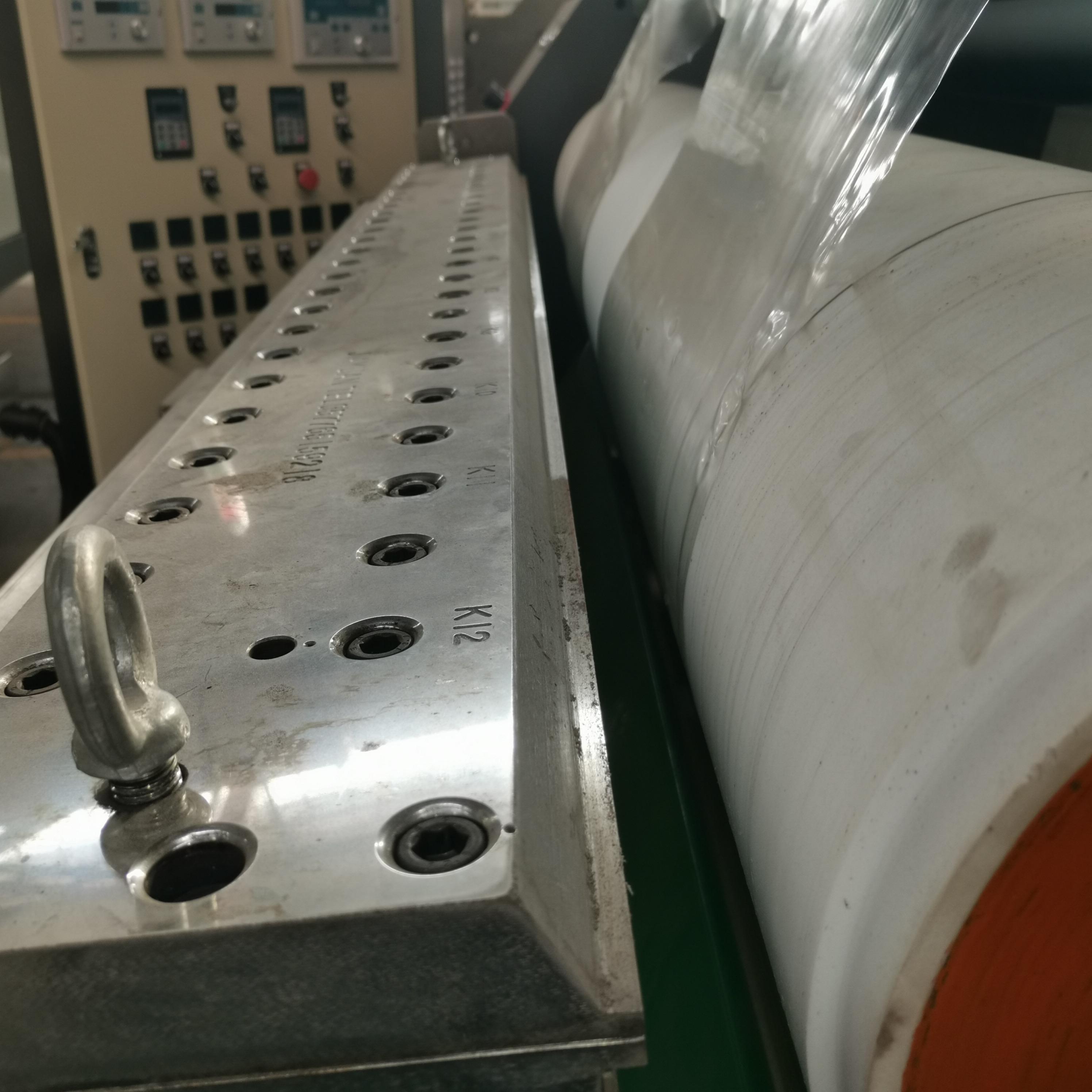

The machine is suitable for kinds of high viscosity hot melt adhesive and thermoplastic materials.By automatic net-  exchange filter,collocate adhesive melting pump and choose special coating die, the highest uniformity is obtained.

Besides, get different coating design by exchanging rollers.In the meanwhile, the high efficiency chilling device ensures   higher coating speed. This machine is especially suitable for polyamide and polyester.Screw continuously feeding glue  and stable glue feeding pressure.The glue output is between 15kg to 1000kg.Working temperature:150-250 ℃ .Suitable viscidity:3000- 150000cps.

Range of application:

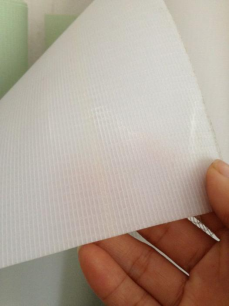

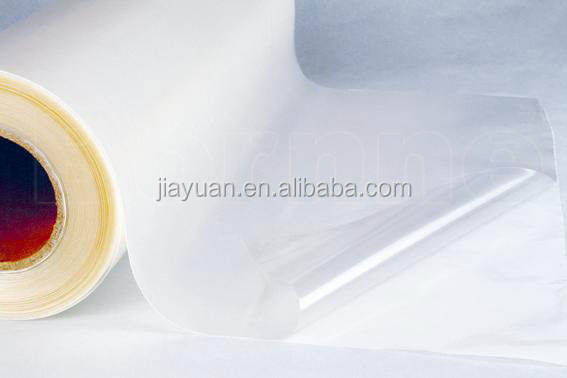

This machine is mainly suitable for high viscosity hot melt adhesive coating, such as  PA,PES,PU,EVA,TPU,etc.  It  is    widely applied to shoe materials,bag materials, hot melt adhe- sive film,garment materials,reflective materials,etc.

Product Advantages & Features

1. Full-Automatic Continuous Production

• Fully integrated extrusion and winding system.

• Reduces labor cost and improves production efficiency.

2. High-Precision TPU Film Extrusion

• Ensures uniform film thickness and smooth surface finish.

• Enhances bonding reliability during lamination.

3. Excellent Material Performance

• Produces TPU films with high elasticity and flexibility.

• Maintains strong adhesion and durability.

4. Wide Application Compatibility

• Suitable for textile lamination, shoe materials, automotive interiors, and electronics.

• Meets diverse industrial bonding requirements.

5. Stable Temperature and Pressure Control

• Multi-zone heating ensures consistent TPU melting.

• Prevents material degradation and performance variation.

6. Adjustable Film Thickness and Width

• Supports customized product specifications.

• Easily adapts to different market demands.

7. High Production Efficiency

• Designed for long-term, high-speed continuous operation.

• Ensures consistent output quality.

8. Energy-Efficient Extrusion Design

• Optimized heating and extrusion structure reduces energy consumption.

• Lowers overall operating costs.

9. Robust Industrial Construction

• Heavy-duty frame ensures stable and vibration-free operation.

• Long service life with minimal maintenance.

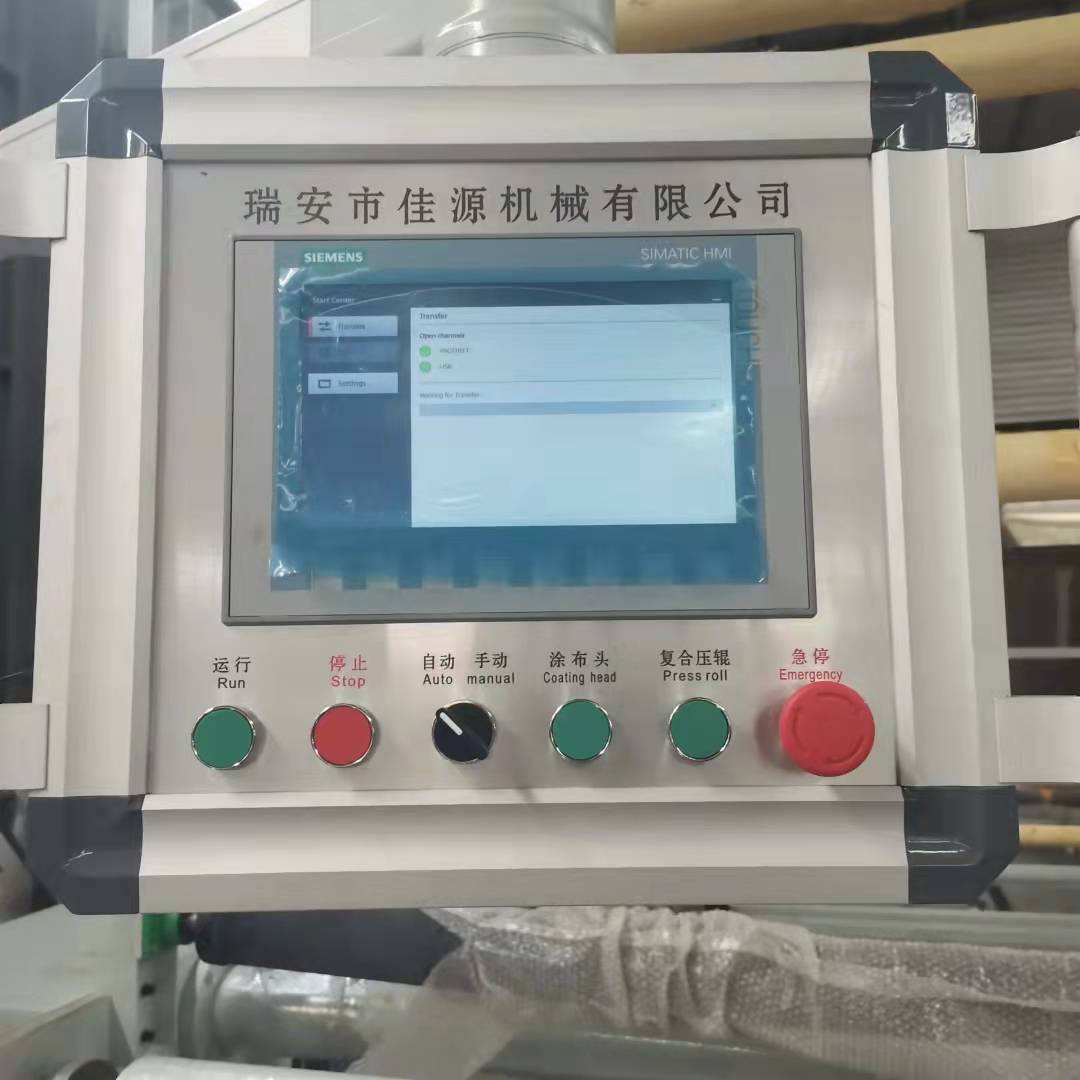

10. Intelligent Control System

• PLC-based automation with user-friendly interface.

• Enables precise parameter adjustment and data monitoring.
