JYJ
JIAYUAN
JYJ-1

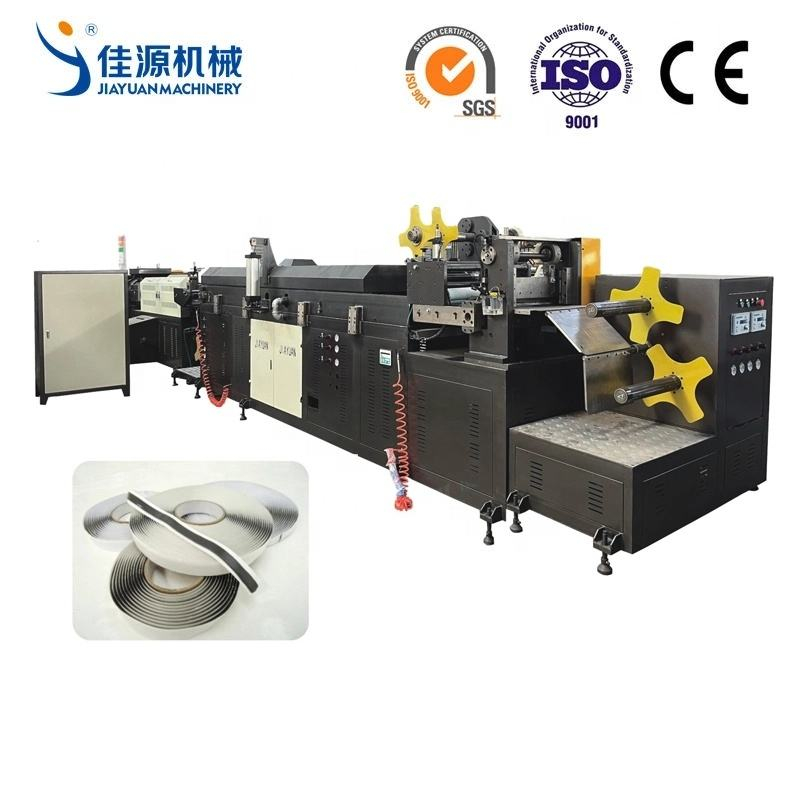

The Full Automatic Butyl Rubber Extrusion Aluminum Foil Coating Sealing Strip Production Line is a highly integrated industrial manufacturing system purpose-built for continuous high-volume production of aluminum foil-faced butyl rubber sealing strips. As a premium butyl rubber sealing strip manufacturing equipment, this line unifies hot melt extrusion, aluminum foil coating, lamination, cooling, slitting, and automatic winding into a fully automated workflow, eliminating redundant manual steps for scale production. Controlled by an advanced PLC system, it delivers precise regulation of core production parameters, ensuring consistent product quality with exceptional adhesion, airtightness, and waterproof performance for demanding industrial applications.
This self-adhesive butyl sealing strip production line integrates all core manufacturing steps into one continuous operation, significantly cutting labor costs, reducing cycle time, and boosting output efficiency for large-scale manufacturing.
The optimized extrusion system guarantees consistent coating thickness and stable adhesive performance, delivering strips with strong self-adhesion, excellent elasticity, and long-term sealing reliability in harsh environments.
The integrated lamination unit enhances UV resistance, aging resistance, thermal insulation, and mechanical strength of finished strips, extending service life and expanding application scenarios.
The advanced PLC system enables real-time monitoring and digital adjustment of temperature, coating thickness, line speed, and tension, ensuring stable long-term operation and consistent batch-to-batch quality.
Adopting solvent-free hot melt butyl rubber technology, the line features low VOC emissions and optimized energy consumption, meeting global industrial environmental standards.
Parameter | Specification |
Model | JYJ-1 |
Brand | JIAYUAN |
Effective Coating Width | 200-500mm |
Coating Thickness | 0.5-5mm |
Line Speed | 1-30m/Min |
Power Supply | ~380V±15% 50Hz |
This butyl rubber waterproof sealing strip production line is ideal for manufacturing enterprises specializing in sealing products for:
Construction waterproofing and roofing system joint sealing
HVAC duct airtight sealing and thermal insulation projects
Automotive body sealing and vibration damping component production
Industrial pipeline insulation and sealing applications
Metal building envelope joint sealing solutions
Can this line support customized sealing strip specifications?
Yes, the system allows flexible adjustment of coating weight, width, and thickness, fully supporting customized specifications to meet diverse project requirements.
Does the equipment support multi-strip synchronous production?
Yes, the line is designed for synchronous multi-strip production, with an automatic edge correction system to ensure production accuracy.
Is the production process solvent-free?
Yes, it adopts solvent-free hot melt processing, with low VOC emissions, complying with global industrial environmental protection requirements.
What after-sales support is provided?
We provide on-site installation, operator training, 12-month warranty, and lifetime technical support for all equipment.
As a professional manufacturer of industrial adhesive coating and extrusion equipment, JIAYUAN has decades of R&D and production experience in the hot melt equipment industry. We provide comprehensive support for industrial production enterprises, including customized equipment configuration, on-site installation and commissioning, operator training, and long-term after-sales service. All our equipment is manufactured in strict accordance with international quality standards, supporting stable export-oriented production for global clients.
