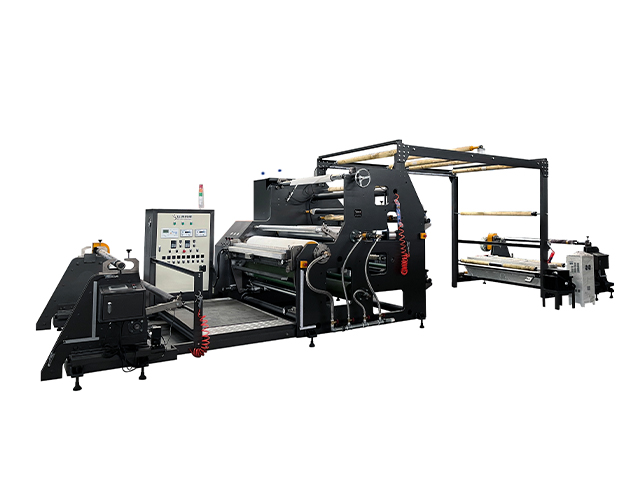

Model JYT-H Hot Melt Coating Machine
Main characteristics:
1.both the first and second undwinding devices adopt self-existing machine-frame.
with automatic edge correcting,which makes laminating result much more ideal.
2.unwinders collocate electric-motor uploading and downloading functions.
3.this machine has all functions of JYT-B hot melt coating machine.
Range of application:
this machine is used for producting self-adhesive products.such as self-adhesive,double-side tapes,fabric tapes,double-side foam tapes,duct tapes,craft tapes,clean adhesive tapes,masking tapes,Aluminum foil tapes,etc .And also suitable for laminating different materials such as non-woven,filter materials,medical materials,label.etc.
Technical parameters
Model | JYJ-H |
Coating Width | 400-2000mm |
Coating Weight | 10-2000g/m² |
Coating Speed | 50-100m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 1000mm |
Correction Device | 2set |
Length | 8500mm |
Height | 2400mm |
