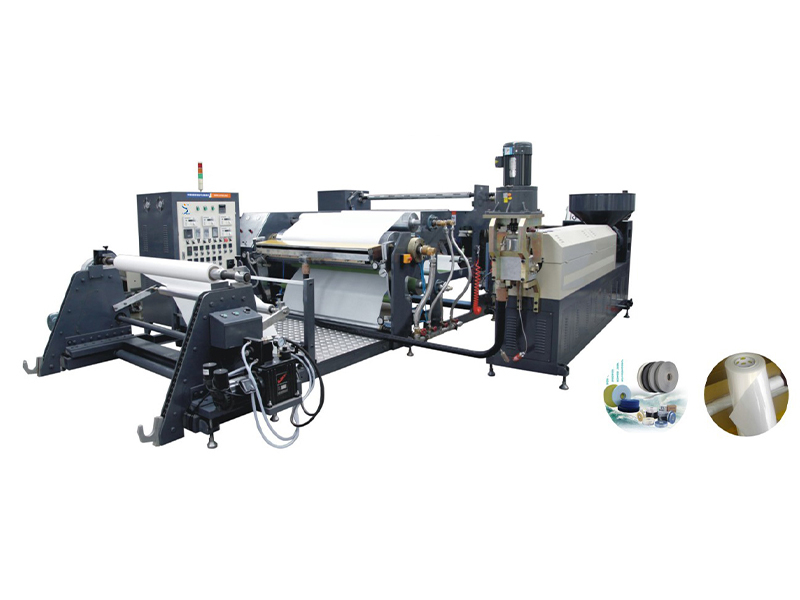

Model JYJ Hot Melt Adhesive Film Coating Machine
Main characteristics:
The machine is suitable for kinds of high viscosity hot melt adhesive and thermoplastic materials.By automatic net- exchange filter,collocate adhesive melting pump and choose special coating die, the highest uniformity is obtained.
Besides, get different coating design by exchanging rollers.In the meanwhile, the high efficiency chilling device ensures higher coating speed. This machine is especially suitable for polyamide and polyester.Screw continuously feeding glue and stable glue feeding pressure.The glue output is between 15kg to 1000kg.Working temperature:150-250 ℃ .Suitable viscidity:3000- 150000cps.
Range of application:
This machine is mainly suitable for high viscosity hot melt adhesive coating, such as PA,PES,PU,EVA,TPU,etc. It is widely applied to shoe materials,bag materials, hot melt adhe- sive film,garment materials,reflective materials,etc.
Technical parameters:
Model | JYJ |
Coating Width | 400-1600mm |
Coating Weight | 20-2000g/m² |
Coating Speed | 50m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 700mm |
Correction Device | 1set |
Length | 5000mm |
Height | 1400mm |
