JYT-B
Jiayuan Machinery
JYT-B-Medical
| Type | Hotmelt Adhesive Coating Machine |
| Coating Width | 400-2000mm |
| Coating Weight | 10-200g/m² |
| Coating Speed | ≤50m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 700mm |
| Machine Length | 5000mm |
| Machine Height | 1400mm |
| Corre Device | 1 set |
Manual Control with Automatic Synchronization: The machine speed and glue feeding speed are manually controlled, ensuring precision, and are automatically tracked synchronously for consistent operation.
Intelligent PID Temperature Control: Equipped with an intelligent PID temperature controlling system, our machine maintains adhesive viscosity with a temperature tolerance of within 1℃, crucial for the coating process of sensitive medical tapes.
High Precision Roller Adjustment: All active and passive rollers are adjusted by a high precision balanceable device, and our logical installing technology ensures stable operation, low noise, and crinkle-free lamination of materials.

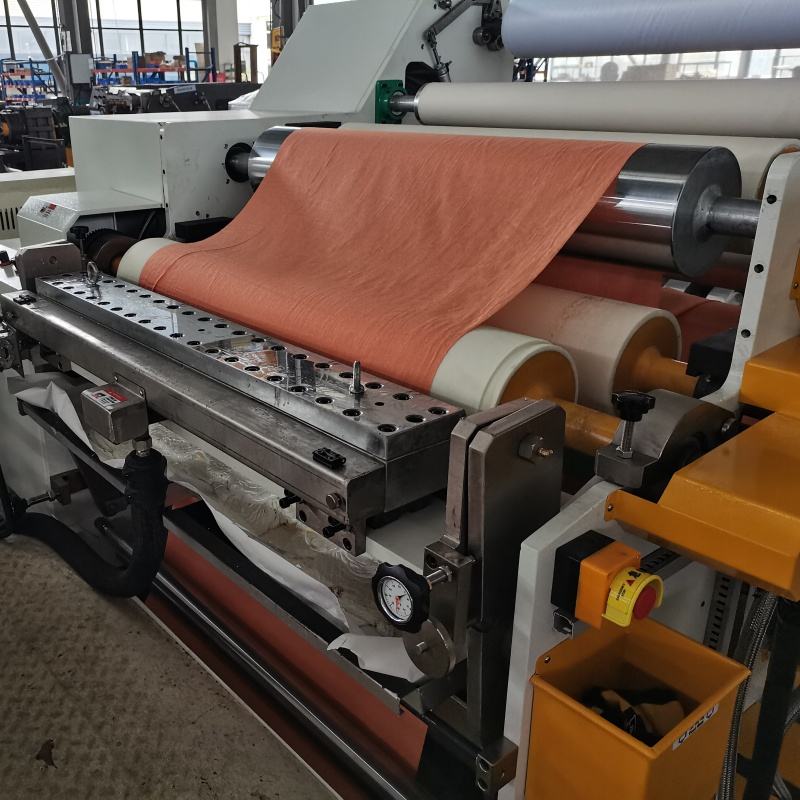

High Quality Coating Die and Pump: A high precision alloy steel coating die and high exactitude gear pump ensure the high quality coating that is essential for medical tape production.
Versatile Fiber Spraying System: By changing the fiber spraying system, the machine can achieve various lamination tasks, including PE film laminating with nonwoven, special fiber material laminating, shoe or clothes materials laminating, and medical material laminating. The fiber spraying system allows for low weight glue spraying that is uniform, exquisite, and ensures high venting quality. With a PUR glue tank, the machine is ready for top-grade material laminating.
Selecting the adjustable width hot melt coating laminating machine signifies a commitment to versatility, precision, and quality in your medical tape production. With its advanced features and customizable capabilities, this machine is not just an asset—it's a partner in innovation and excellence.
For further inquiries, customization requests, or to place an order, please contact us directly or use the inquiry form on our website. Our dedicated sales team is ready to assist you with any questions and provide support for your medical tape production needs.
Ensures controlled and even adhesive coating.
Provides consistent tack and peel strength.
Designed to process zinc oxide hot melt formulations smoothly.
Maintains stable adhesive properties during long production cycles.
Preserves fabric softness and breathability.
Enhances comfort and reduces skin irritation.
Integrates coating, laminating, cooling, and rewinding.
Improves productivity and reduces human contact.
Accurate heating zones maintain optimal adhesive viscosity.
Prevents adhesive degradation and performance loss.
Works with multiple medical-grade substrates.
Suitable for different tape widths and thicknesses.
Hot melt technology eliminates solvent emissions.
Supports environmentally friendly medical manufacturing.
Produces flat, wrinkle-free finished rolls.
Improves downstream slitting and packaging efficiency.
Strong machine structure ensures long-term operation.
Designed for continuous medical tape production.
Adjustable speed, coating weight, and working width.
Easily adapted to different medical tape specifications.
