Main characteristics:
1、 PLC controlling,human-machine interface.Coating speed showing, adhesive feeding quantity setting, tension adjusting for unwind and rewind, etc.
2、 Pneumatic material-connecting device, which convenient for materials connecting,and ensure smoothness of connecting materials, thus to realize non-stop production.
3、 Automatic tension controlling system for unwind and rewind.Centre & surface rewinding guarantees the finished products in good order
4、 Adopted the high precision alloy steel spray head, which has made users get optimal coating result.
5、 Extend distance between coating device and compound, it suits some material which can not bear high Temp.
Range of application:

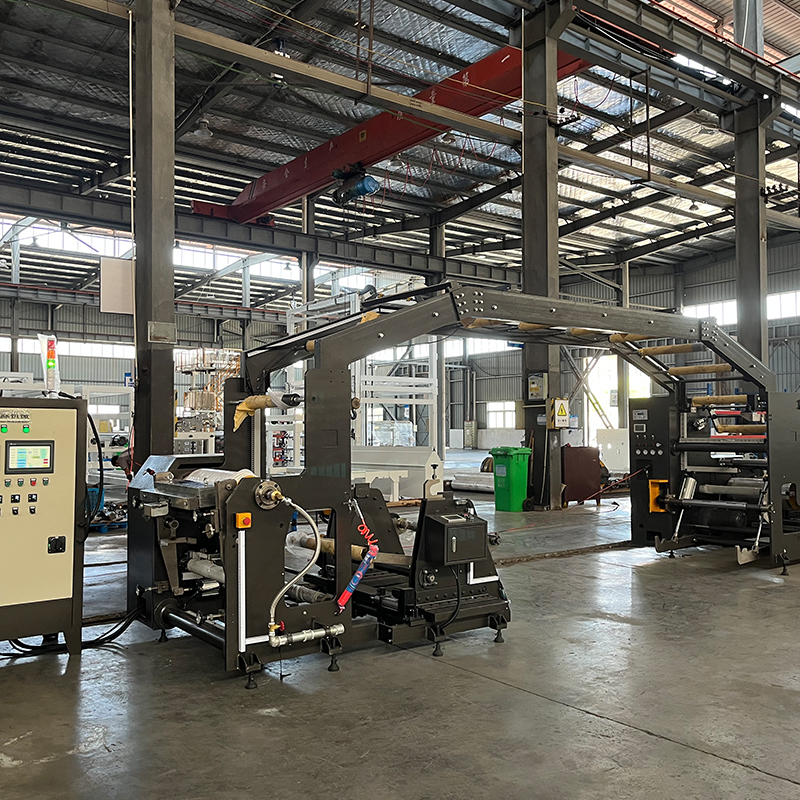

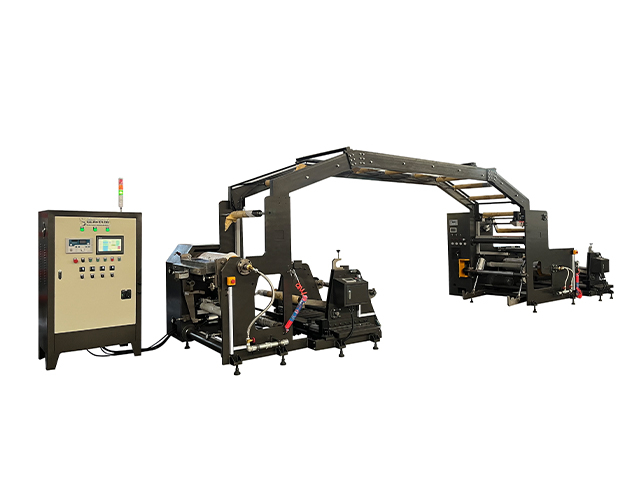

JYT-GF machine mainly used in pressure sensitive adhesive coating,such as self-adhesive label, heat sensitive label,adhesive tapes ,advertisement inkjet material, And laminating of poor temperature resistance.
Technical parameters
Model | JYT-GF |
Coating Width | 400-2000mm |
Coating Weight | 10-200g/m² |
Coating Speed | 200m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 1000mm |
Correction Device | 2sets |
Length | 12000mm |
Height | 2600mm |
