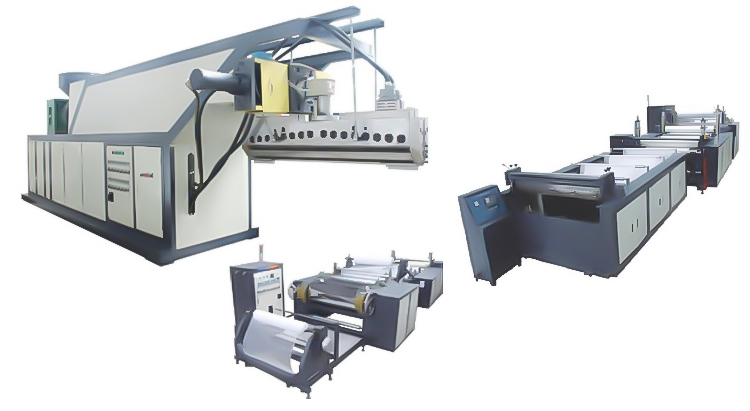

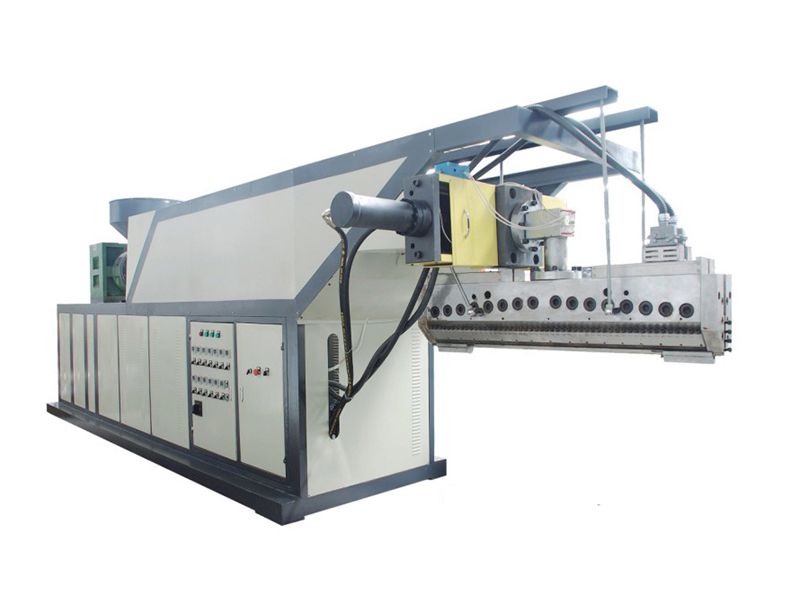

Hot Melt Glue Cast Film Production Line
Main characteristics:
1.The main parts such as screw, roller and die are made of 38crmoala,and have given hydrotreating,so they are wearproof and corrosion resistant.
2.Major axis screw is well plastified to guarantee the uniformity of film.
3.Exchanging filter net in die head and adopting up and down device with motor to get convenient operating,thus to improve the Production efficiency.(Automatic uploading system can be collocated as customers requirement).
Range of application:
This kind of machine is designed and manufactured by taking the advanced technology from home and abroad. It can be applied in all kinds of shoes materials,such as hot melt adhesive Sheet,Counter,cloth and so on.
Technical parameters:
Model | JSP-1000 | JSP-1500 |
Flim width | 1000mm | 1500mm |
Flim thickness | 0.3-2.0mm | 0.3-2.0mm |
Screw diameter | 115mm | 120mm |
Main motor power | 55kw | 75kw |
Max.yield | 400kg/h | 500kg/h |
Total power | 80kw 12x12 x2.4m | 100kw 13×12 ×2.4m |
