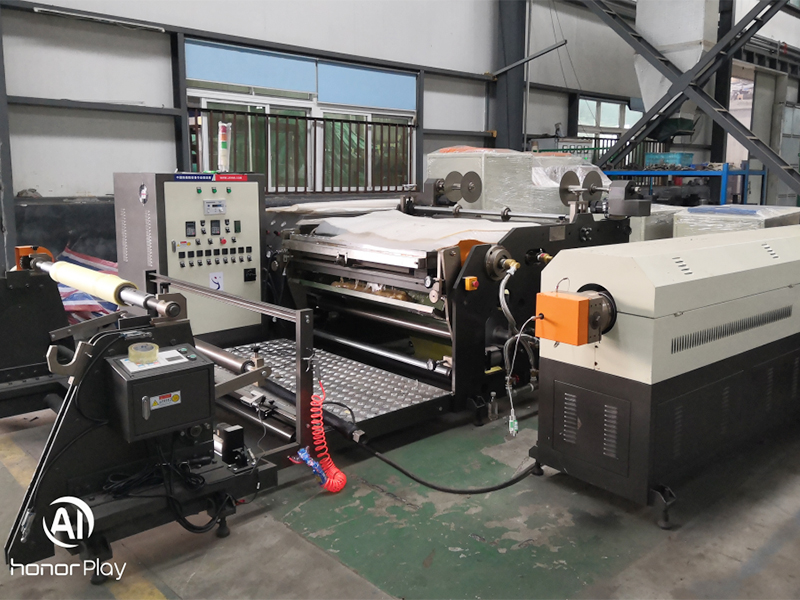

Main characteristics:
The machine is suitable for kinds of high viscosity hot melt adhesive and thermoplastic materials.By automatic net- exchange filter,collocate adhesive melting pump and choose special coating die, the highest uniformity is obtained.
Besides, get different coating design by exchanging rollers.In the meanwhile, the high efficiency chilling device ensures higher coating speed.
Range of application:
This machine is mainly suitable for high viscosity hot melt adhesive coating, such as PA,PES,PU,EVA,TPU,etc. Middle-high temperature shoes material, like single face muslin hot melt adhesive sheet, counter, chemical sheet, hot melt adhesive sheet. antis-corrupt tapes etc.
Technical parameters:
Model | JYJ | |
Coating Width | 400-1600mm | |
Coating Weight | 20-2000g/m² | |
Coating Speed | 50m/min | |
Unwind Diameter | 1000mm | |
Rewind Diameter | 700mm | |
Correction Device | 1set | |
Length Height | 5000mm 1400mm | |
