JYT-GB High Speed Hot Melt Adhesive Coating Machine

The JYT-GB High-Speed Hot Melt Coating Machine is a precision-engineered solution for applying hot melt adhesives to flexible substrates such as PVC leather and waterproof base films. Developed by Ruian City Jiayuan Machinery Co., Ltd., this model is designed for industrial manufacturers seeking enhanced productivity, uniform adhesive application, and automation in high-throughput settings.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button



Product Overview


The JYT-GB High-Speed Hot Melt Coating Machine is a precision-engineered solution for applying hot melt adhesives to flexible substrates such as PVC leather and waterproof base films. Developed by Ruian City Jiayuan Machinery Co., Ltd., this model is designed for industrial manufacturers seeking enhanced productivity, uniform adhesive application, and automation in high-throughput settings.

Capable of speeds up to 350m/min and coating widths up to 2000mm, the machine delivers exceptional efficiency for large-scale laminating and adhesive processing operations. With its user-friendly control system and optimized material handling design, it supports continuous, stable production under demanding conditions.



Technical Specifications


Parameter Specification
Model JYT-GB
Coating Width 400–2000 mm
Coating Weight 10–200 g/m²
Max Coating Speed 350 m/min
Unwinding Diameter 1000 mm
Rewinding Diameter 1000 mm
Coating Method Slot die / Non-scratch (optional)
Control System PLC + Touchscreen
Tension Control Auto constant tension system
Origin Zhejiang, China



Key Features


Integrated Automation for High-Speed Production

Equipped with a PLC touchscreen system, the JYT-GB allows single-operator control for real-time process monitoring and rapid adjustments. This supports a modern production mode where efficiency, safety, and precision are prioritized.


Continuous Operation with Smart Material Change

The machine’s pneumatic splicing system enables seamless raw material switching without halting production. This feature is especially valuable in continuous roll production environments where downtime must be minimized.


Consistent Adhesive Performance

Advanced slot die coating technology, combined with auto constant tension control, ensures uniform adhesive distribution across high-speed runs. Customers can also opt for a non-scratch coating head depending on material sensitivity and surface finish requirements.

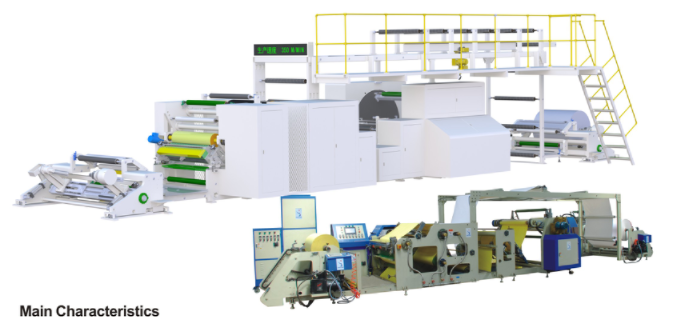

Product Images


jyt-gb



Applications


Designed for professional manufacturers, the JYT-GB hot melt adhesive coating machine is widely used in the production of automotive PVC floor leather, waterproof rolling membranes, and other composite substrates. It excels in lamination lines where speed, accuracy, and product quality are critical.

This equipment supports the high-speed coating of adhesives onto flexible materials, offering reliable performance in applications such as interior automotive panels, decorative protective layers, and waterproof flooring systems. Its consistent output and process stability help companies reduce product waste, shorten changeover time, and improve adhesive bonding strength—resulting in better-performing end products and higher line efficiency.



FAQ


Q1: What coating methods are available?

A1: We offer standard slot die coating and optional non-scratch coating heads to suit your application needs.


Q2: What industries use this machine?

A2: It is widely applied in automotive interiors, PVC flooring, waterproofing, and industrial lamination.


Q3: Can it run non-stop during raw material changes?

A3: Yes, the pneumatic splicing feature ensures material changes can happen without stopping the machine, improving overall efficiency.
